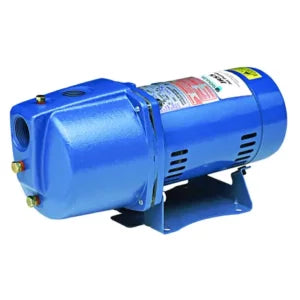

Shallow Well Pump – J Series - Goulds

FEATURES
Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.

Serviceable:
• Back pullout design allows disassembly of pump for service without disturbing piping.
• Two compartment motor for easy access to motor wiring and replaceable components.
• Nozzle clean out plug in pump case.
• Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium O-ring design fittings need only be hand tight to seal.

Impeller: F.D.A. compliant, glass filled Noryl®. Corrosion and abrasion resistant.

Diffuser (Guidevane): Bolt down diffuser provides positive alignment with impeller. Diffuser also has stainless wear ring for extended performance in abrasive conditions. F.D.A. compliant, injection molded, food grade, glass filled Lexan® for durability

Tubing and Fittings: F.D.A. compliant engineered plastic is corrosion and U.V. resistant.

Powered for Continuous Operation: Pump ratings are within the motor manufacturer’s recommended working limits. Can be operated continuously without damage.

Corrosion Resistant: Electro-coated paint process is applied inside and out, then baked on.

Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry.

Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve.

PRODUCT FEATURES

• NSF 61 Certified: Ensuring safety when used in drinking water systems
• Comes standard with a built-in shallow well adapter eliminating the need to purchase a separate accessory
• Back pull-out design makes it easy to replace
• Two-compartment motor for easy access to wiring
• Corrosion resistant to extend the life of the product
• Protected mechanical seal for reliable operation and performance
