Saer Regolatore Pressione Brio2000M Code Se83117016 (#todo)

Saer Regolatore Pressione Brio2000M Code Se83117016 (#todo)

Variant Description

Variant Dimensions

Keylargo Industrial Sales

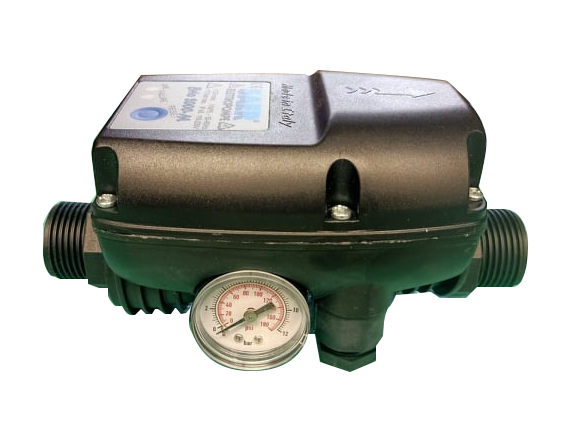

SAER REGOLATORE PRESSIONE BRIO2000M code SE83117016 119

GENERAL FEATURES
• It automatizes the start and stop operations of single-phase electric pumps up to 2HP (12A)
• It replaces completely the traditional water system set up consisting on pressure switch and pressure tank
• It starts the electric pump after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing)
• It protects against the dry running
• Starting pressure is adjustable during installation
• Standard 1”G (Male) hydraulic connections
• Installation in any position – both vertical and horizontal according to the flow direction
• Easily replaceable electronic printed circuit board
• No maintenance needed

OPTIONALS AND SPECIAL VERSIONS
• Automatic reset after a stop caused by dry running
• Version with electrical cables for motor and line connection (with Schuko plug)
• Hydraulic connections with revolving nut 1”G (Female) for pipe union
• Versions for 24 V

leaflet-brio-2000-m_01-2019
