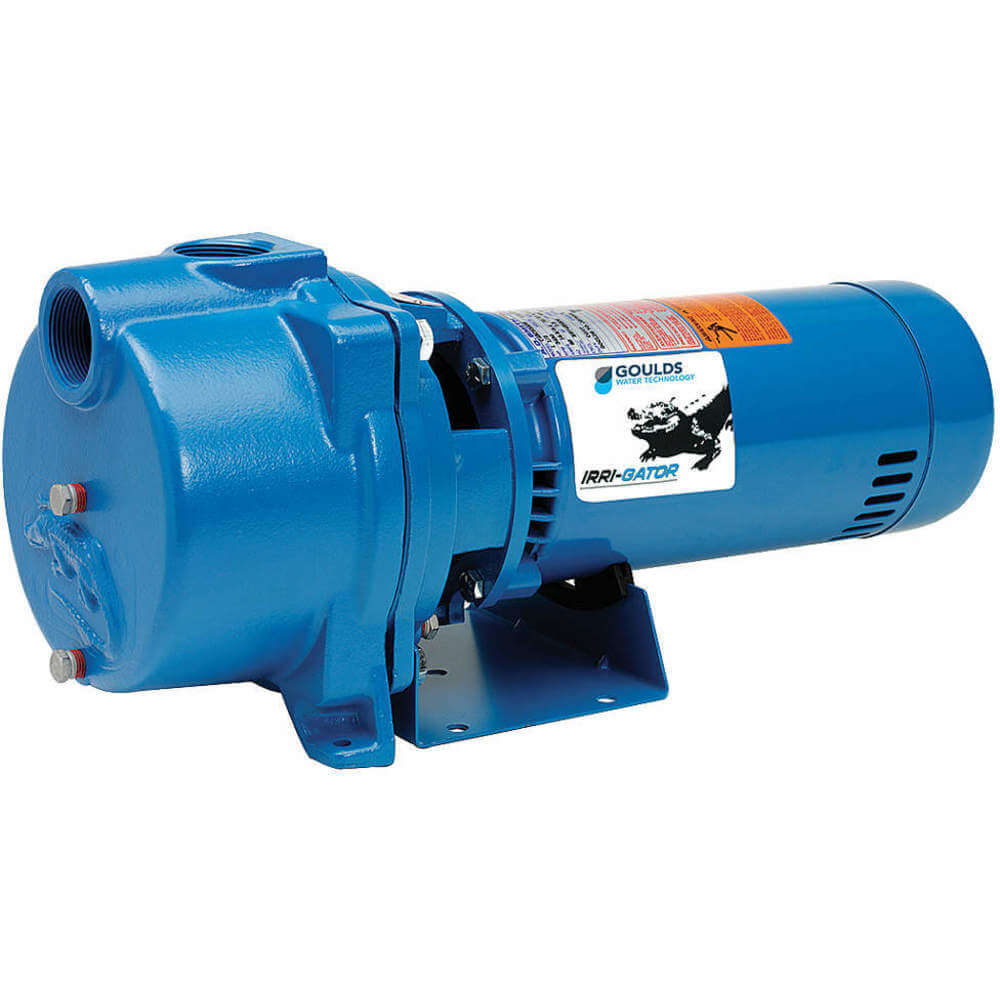

Self Priming Centrifugal Pumps - GT Series - Goulds Xylem

FEATURES

➀Self-Priming Design: Once pump is initially primed, filled with water, it will reprime when the water level
rises above the end of the suction pipe.

Serviceable:
• Back pullout design allows disassembly of pump for service without disturbing piping.
• Two compartment motor for easy access to motor wiring and replaceable components.

Diffuser (Guidevane): Bolt down diffuser provides positive alignment with impeller. F.D.A. compliant, injection
molded, glass filled Lexan® for durability and abrasion resistance.

Impeller: F.D.A. compliant, glass filled Noryl®. Corrosion and abrasion resistant.

Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on.

Casing: Cast iron, 4-bolt, back pull-out design. Openings for vacuum gauge and casing drain.

Powered for Continuous Operation: Pump ratings are within the motor manufacturer’s recommended working
limits. Can be operated continuously without damage.

Mechanical Seal: Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Diaphragm
prevents the seal from running dry

PRODUCT FEATURES

• Self-priming design meaning the pump will reprime itself after the first manual prime
• Fully serviceable Back pull-out design makes it easy to replace
• Two-compartment motor for easy access to wiring
• FDA compliant impeller for ease of mind
• Strong and durable cast iron casing for physical longevity
• Corrosion resistant to extend the life of the product
• Powered for continuous operation without causing motor damage
• 1½” NPT suction and discharge connections for easy plumbing

IRR-GATOR Model GT Self Priming Centrifugal Pumps (60 Hz) residential and small commercial applications include:

• Lawn sprinkling
• Irrigation
• Water transfer
