Peerless Pumps

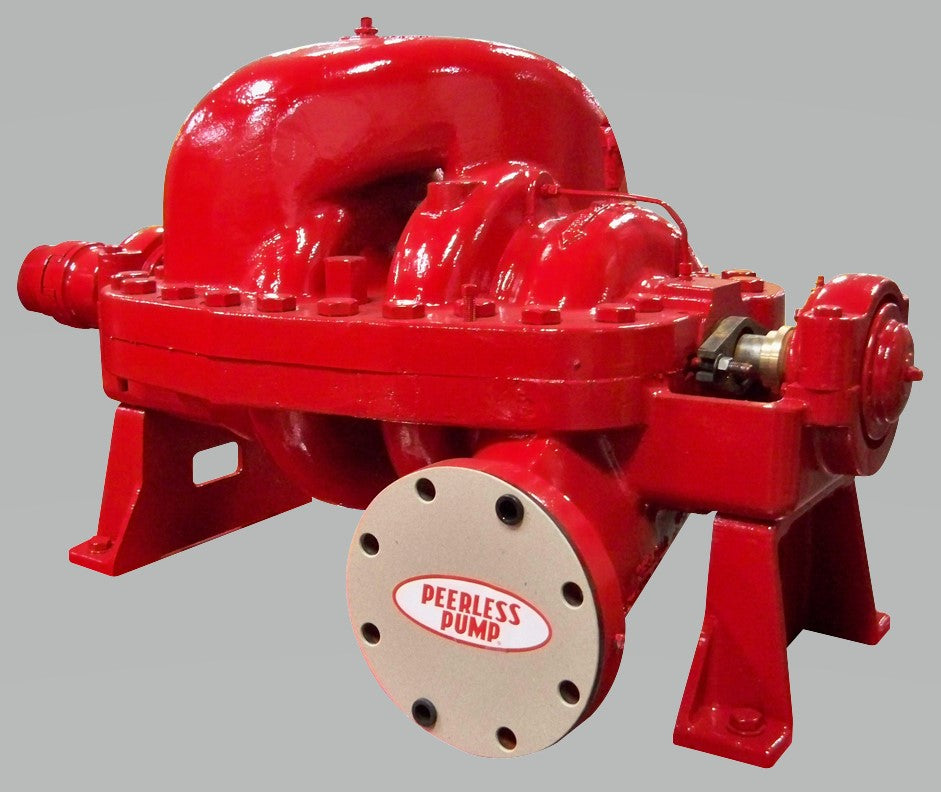

Fire Pumps Horizontal Split Case (TUF & TUTF Series) – Peerless
Fire Pumps Horizontal Split Case (TUF & TUTF Series) – Peerless
Variant Description
Variant Description
Variant Dimensions
Variant Dimensions
Applications:
- Commercial Building
- Industrial Facilities
- Energy Facilities
- Oil & Gas Facilities
- Power Plants
For specific technical details, configurations, and compatibility, please to refer to Peerless Fire Pumps Horizontal Split Case (TUF & TUTF Series) product documentation https://www.peerlesspump.com/products/fire/tuf/ or send us an email at our contact us page for more details and quotation.
• The Peerless multi-stage pumps are designed for high efficiency, long life and ease of maintenance and can be used in a variety of fire pumping services.
• Shafts, ball bearings. Modern design case. Wear rings and shaft sleeves are designed to provide pro1e1cion of wearing surfaces and insure extended pump life.
| Capacities | 50-1,500 gpm (11-340 m3/hr) |
| Head | 230-1,530 feet (70-454 m) |
| Pressure | 100-646 psi (6.8-44.5 bar) |
| Horsepower | Up to 500 hp (372 kW) |
| Temperature | Ambient within the limits for satisfactory equipment operation |
| Drives | Electric motors, diesel engines |
| Liquids | Potable/non-potable water, salt water |
| Materials | Cast iron, bronze fitted as standard. Optional materials available for sea water applications. |
